Wednesday, 19 September 2018

Wargames Wasteland HQ (Part 11 - Starting on some scenics)

As usual I'm jumping about from topic to topic. So, notwithstanding the fact that I've not yet completed work on my modular tiles, I've started working on some scenery pieces to add some height.

This is a WIP post so there are no finished products to be seen yet.


I've built a few different types of hills. All are made from polystyrene sheets. The polystyrene used is the dense kid - fairly robust and not easily dented/damaged. All will be painted firstly with a mixture of black emulsion/PVA/sand to give some texture and strength to the surface. A second coat of black emulsion will then be applied before drybrushing etc. In the images that follow, some have had that first coat, some haven't.
Single-tier hills

More single-tier hills

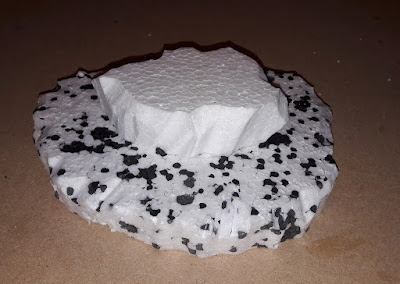

two-tier hills

3-tier hills

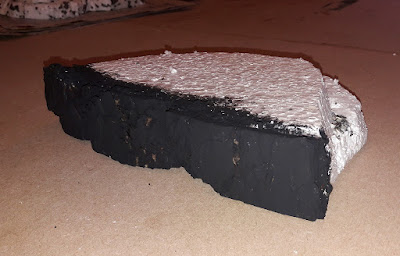

And a two-tier cliff - the cliff face is difficult to make out but it's a few chunks of tree-bark.
It'll be easier to see when painted.

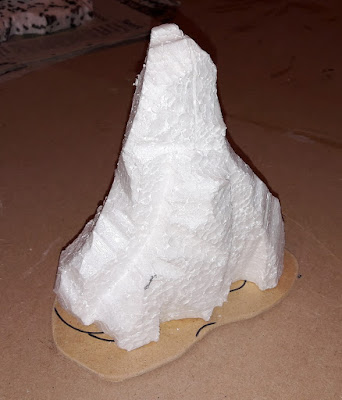

The rocks are chunks of polystyrene hacked into shape, based on hardboard and will be textured with some gravel and the same paint/PVA/sand mixture as was used on the hills (and everything else!).
Rocky outcrop

Rocky outcrop

Difficult Ground:

Randomly scattered chunks of foam and gravel, textured with sand/PVA/paint etc.
Difficult ground

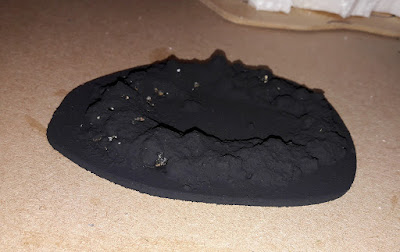

There's no foam in the craters. These have been built by gluing a ring of gravel onto a hardboard base with PVA. A second ring of gravel was added once the first had dried. Once that was dry, I applied a final layer of PVA and then "smooshed it around" with my fingertips, working it into the cracks and crevices between the gravel I'd previously applied. I then covered the gravel with a layer of sharp-sand and allowed that to dry. Once dry, I removed all the loose sand with a 2'' paintbrush and then painted with the same mix as used on all the other pieces above.

There's clearly more work to do here - the pieces all need another (and in some cases - a first) coat of black paint and need then to be highlighted and dressed.

The pictures above also show only a fraction of the pieces I've built so far - there are a couple of dozen items in total.

More news as it comes in...

More scenery stuff:
More wargames table stuff:
